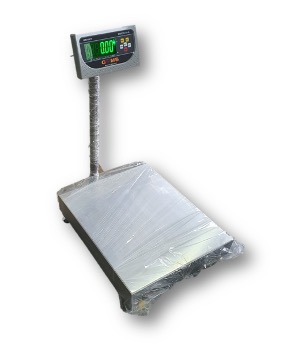

GMSLSS300
PATTERN APPROVAL MODEL : GMS-ATP500
PATTERN APPROVAL No : ATS-0053-19
- Pattern Approval Certificate
- Technical Specification
|
Max Capacity |
300kg |
|
Min Capacity |
2kg |
|
Division |
0.1kg |
Structural Features:-
|
Top pan size: 500mm x 600mm Material: #304 Fully stainless steel top pan, round pole, welded internal square tubes, adjustable round foot |
Technical Parameters:-
|
NMIM Accuracy Class: III Display: 6-digit 23~30mm LCD with backlight or 20~38mm LED in green or red Power supply: 6v rechargeable battery with 12v adaptor Load cell: Mavin NA3 500kg |
Optional GMS Indicators:-
|
GMS3119P-B (LCD Display with backlight) |
|
GMS3119P-G (Green LED Display) |
|
GMS3119WP(LCD Display with Backlight / Water Resistant) |
|
GMS3119WM (Red LED Display / Water Resistant) |
|
GMS3119WL (LCD Display with Backlight / Water Resistant) |
|
GMS3119WL-G (Green LED Display / Water Resistant) |
