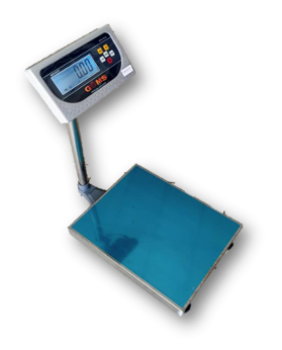

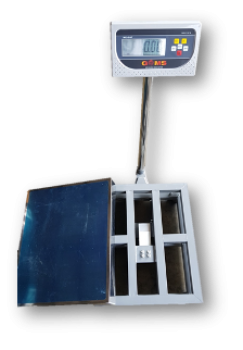

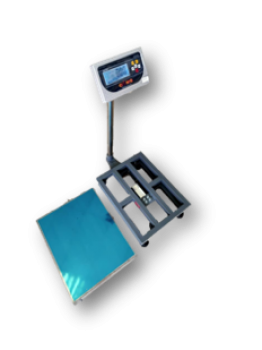

ECF-TCS
Standard Platfrom Scale
PATTERN APPROVAL MODEL : GMS-ATP100
PATTERN APPROVAL MODEL : GMS-ATP150A
PATTERN APPROVAL MODEL : GMS-ATP500
PATTERN APPROVAL No : ATS-0053-19
PATTERN APPROVAL MODEL : GMS-ATP100
PATTERN APPROVAL MODEL : GMS-ATP150A
PATTERN APPROVAL MODEL : GMS-ATP500
PATTERN APPROVAL No : ATS-0053-19
Description
Product Details:-
| Product Code | Platform Size | Top Pan Thickness | Capacity | Division |
| ECF-TCS-100 | 300mm x 400mm | 1.0mm | 100kg | 20g |
| ECF-TCS-150 | 400mm x 500mm | 1.0mm | 150kg | 50g |
| ECF-TCS-300 | 500mm x 600mm | 1.2mm | 300kg | 100g |
| ECF-TCS-500 | 600mm x 700mm | 1.5mm | 500kg | 500g |
Structural Features:-
|

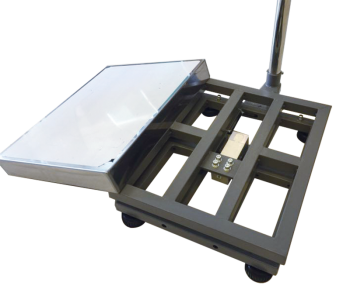

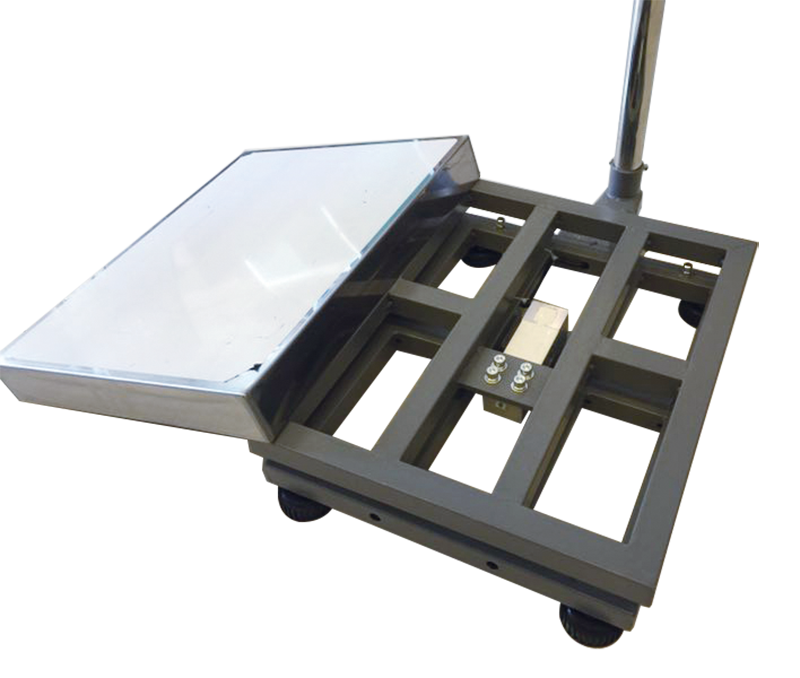

Material: #430 stainless steel top pan #201 stainless iron round pole Welded internal square tubes in spray painted gloss finish (blue/grey) Others: Adjustable round rubber foot |
Technical Parameters:-
|
NMIM Accuracy Class: III Display: 6-digit 30mm LCD with backlight or 38mm LED in green Power supply: 6v rechargeable battery with 12v adaptor Load cell: Mavin NA3 500kg |
Optional Indicators:-
|
GMS3119P-B (LED Display) |
|
GMS3119P-G (LCD with Backlight) |
